Zinc Nickel Plating
Zinc-nickel is a high-performance coating used in more corrosive applications. It delivers up to ten times the protection of standard zinc, maintains performance under higher temperatures, and offers better wear resistance for moving components. It’s also a strong base for paint, powder coat, or e-coat.
Stable chemistry is essential for producing a zinc-nickel finish that meets quality requirements. Because we run this finish daily, our operators have a deep understanding of how the alloy deposits and how chemistry changes during production. That expertise helps us make adjustments to keep the process controlled so we can provide consistent, reliable finishes.
Zinc-Nickel Finishes We Offer
Gatto offers a full range of industrial zinc-nickel plating services, with finishes available through both rack and barrel processing.
.jpg)
.jpg)
Compare Our Zinc-Nickel Finishes
| Finish Type | Appearance | % Nickel | Barrel | Rack | Max Size | Common Specifications |
|---|---|---|---|---|---|---|
| Blue Appearance |
10–18 % |
✓ |
✓ |
12 ft / 1,800 lb |
|
|
|
Iridescent Red-Yellow-Green |
10–18 % |
✓ |
✓ |
10 ft / 1,800 lb |
|
|
|

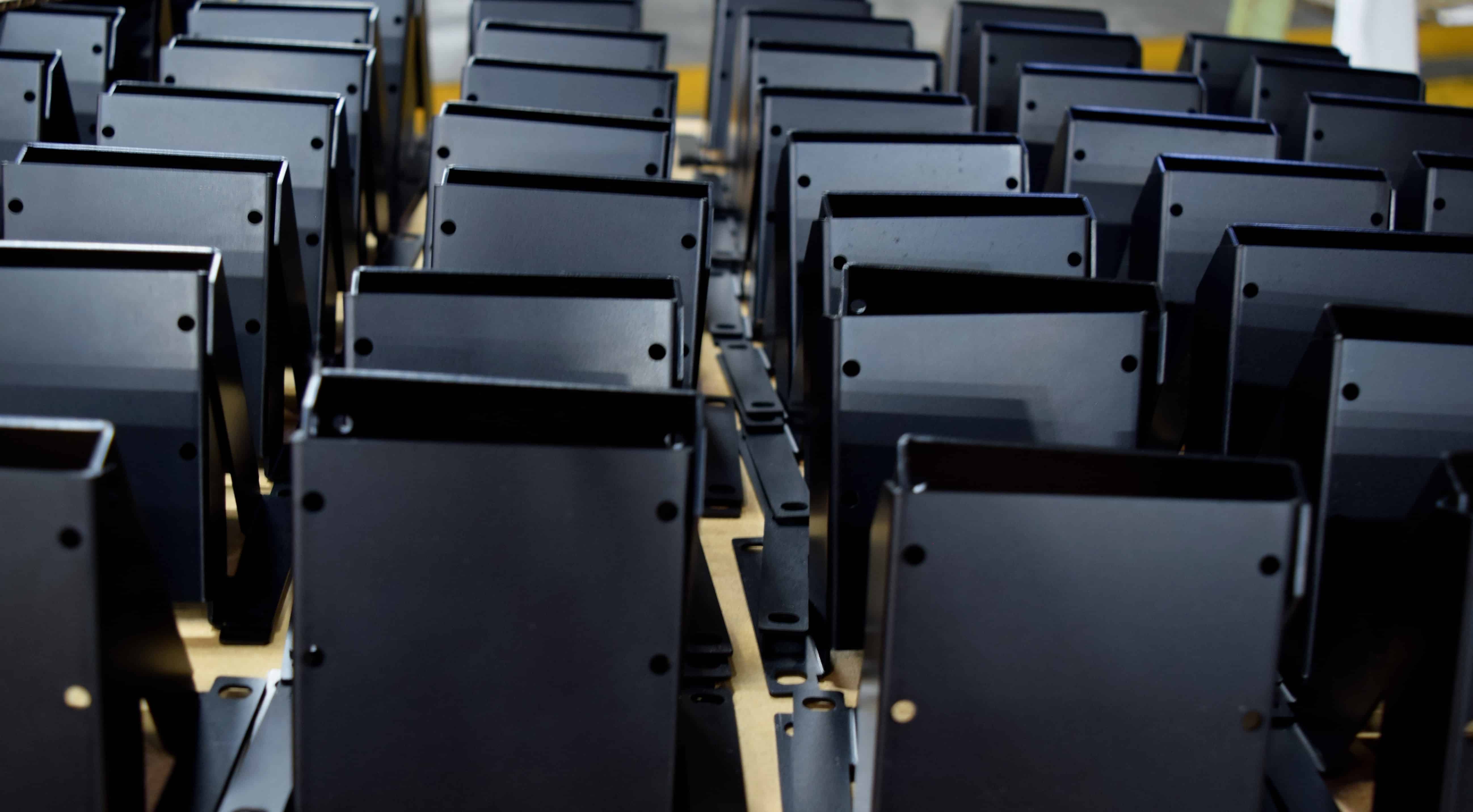

Deep Black |
10–18 % |
✓ | ✓ |
10 ft / 1,800 lb |
|
What Sets Our Zinc-Nickel Plating Apart
Running zinc-nickel right takes experience. Maintaining the right alloy balance, controlling chemistry throughout production, and operators who know how to adjust to keep the process running smoothly.
That’s where Gatto stands apart. With more than 50 years of experience running zinc-nickel, we know how to maintain tight process control so we can provide dependable finishes with quick turnaround.

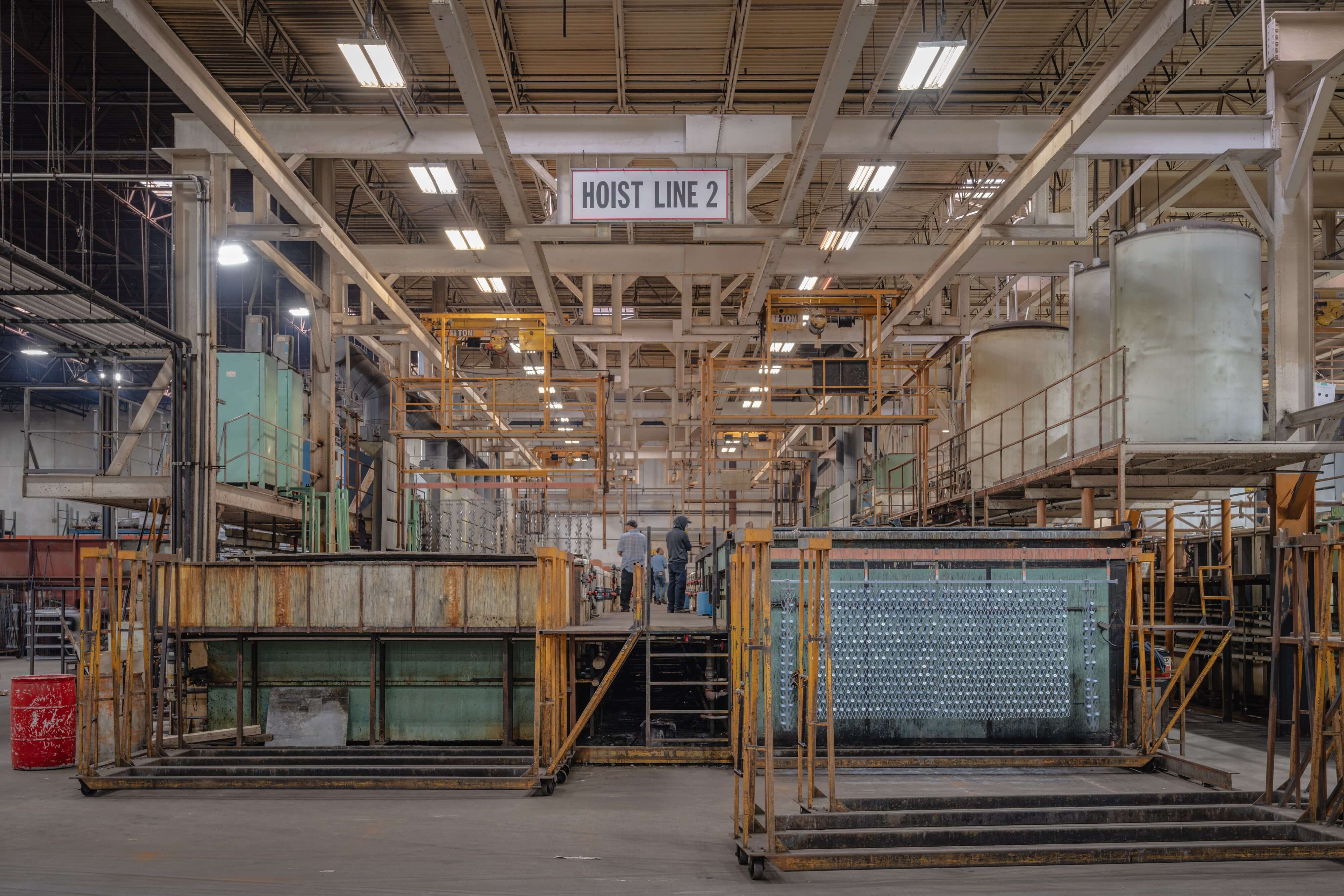

Plating Lines Designed to Handle All Parts
Our custom built lines give us flexibility to process a wide range of parts. Whether it’s large or complex components or short-run orders, we can adjust orientation, timing, and process conditions as needed to maintain consistency across part types.
Daily Bath Testing + Chemistry Control
We adhere to a set schedule for bath analysis and maintenance which prevents downtime and keeps our lines running efficiently.
Rack + Barrel Capability
With both rack and barrel plating lines running daily, we plate a wide range of part sizes and volumes, ensuring each part gets the right process for a consistent finish.
Fast, Predictable Turnaround
Because our baths are used, monitored, and maintained daily, chemistry stays in range and ready to run. That consistency allows most orders to ship within 5–7 business days.
Hydrogen Embrittlement Relief Baking (When Required)
Limited oven capacity can cause post-plate baking to slow production. With ten temperature-controlled ovens, Gatto has ample capacity to prevent that bottleneck, allowing parts to bake immediately after plating so orders keep moving.
Experience That Shows
After 50 years of plating, we know which part features can cause challenges. We help identify and advise of potential problems upfront, so they don’t create larger issues later.
Interpreting Zinc-Nickel Specifications (ASTM B841 and More)
Plating specs shouldn’t slow you down. Whether your print lists every detail or simply says “Zinc-Nickel per ASTM B841,” we’ll help you interpret what’s required. From coating class and thickness grade to chromate type and corrosion performance, we’ll guide you through the details so you can confidently choose a finish that meets both compliance and functional standards.
Our in-house lab analyzes and adjusts every bath daily to maintain the proper alloy balance and consistent results within ASTM B841 requirements.
Why Manufacturers Choose Zinc-Nickel
Zinc-nickel is chosen for parts that need to perform under pressure. It combines strength, consistency, and compliance, making it a dependable finish across industries and environments.
Up to 10x Greater Corrosion Protection
Extends service life and reduces the need for replacements or rework which keeps critical assemblies in service longer.
Reliable at High Temperatures
Provides good corrosion protection at elevated temperatures and has been used to coat components exposed to systems, such as engines, transmissions, and brakes.
Wear-Resistant Coating
Provides better wear resistance over standard zinc or paint, making it an option for parts exposed to moderate friction or abrasion.
Strong Base for Secondary Finishes
Provides good adhesion and durability when paint, powder coat, or secondary coatings are applied.
Tight Dimensional Control
Delivers a smooth, even coating that maintains fit and function on threaded or precision components.
RoHS Compliant
Trivalent passivates meet RoHS requirements for applications that restrict the use of hexavalent chromium.
Cadmium-Alternative Approved
A widely used alternative to cadmium plating for industries facing stricter environmental and hazardous substance restrictions. Chosen for its strong corrosion protection across automotive, marine, defense, and oil & gas applications.
Zinc-Nickel as a Cadmium Plating Alternative (Modern Replacement for Cadmium)
When older prints still specify cadmium, zinc-nickel has become a trusted alternative. Cadmium once led the industry in corrosion protection, but evolving environmental and worker-safety regulations have made it difficult to source and costly to maintain.
Zinc-nickel plating achieves a similar level of protection as cadmium without the regulatory limitations. Meeting RoHS and global environmental standards, it routinely exceeds 1,000 hours in ASTM B841 corrosion testing and is approved across many major OEM, automotive, and military specifications.
Where Zinc-Nickel Plating Works Best
Zinc-nickel plating is made for harsh environments where exposure to heat, salt, or chemicals requires higher protection. It’s commonly used for:
- Automotive & Heavy Truck: Vehicle components with exterior exposure or those that need to withstand wear, heat, or other corrosive conditions.
- Agricultural & Construction Equipment: Components exposed to weather, fertilizer chemicals, and heavy wear.
- Hydraulic & Pneumatic Systems: Components used in harsh fluid or pressure environments.
- Electrical Transmission & Power Storage: Components used in outdoor, high-corrosion settings.
- Oil, Gas & Marine Environments: Hardware and fasteners operating in salt-laden or seawater conditions.
- Defense: Parts originally specified for cadmium plating and now using zinc-nickel as a high corrosion-resistant alternative.
Zinc-nickel delivers long-term reliability by protecting critical assemblies, extending product life, and keeping production on schedule.
What Is Zinc-Nickel Plating & Why Nickel Content Matters
Zinc-nickel plating is an electroplated alloy in which zinc and nickel co-deposit together to form one uniform metallic layer.
It’s NOT:
- Zinc with a nickel layer on top
- Nickel followed by a zinc layer
- The same as pure nickel plating
- A cosmetic finish
This alloy combines zinc’s sacrificial corrosion protection with nickel’s hardness, heat resistance, and wear strength to deliver a high-performing industrial finish.
Zinc Nickel is not a cosmetic finish. Even with nickel in the alloy, it won’t produce a decorative, high-gloss appearance. Most parts plate to a matte or dull look, with only slight sheen depending on the base metal and nickel content.
Why Nickel Content Matters
When nickel co-deposits with zinc, it significantly increases corrosion resistance, often lasting up to ten times longer than standard zinc in salt-spray testing. But that performance depends on keeping nickel within a balanced range so the coating stays both protective and flexible.
- Below 5% nickel: Corrosion resistance diminishes when the nickel content is below this percentage
- Above 20% nickel: The finish can become brittle and lose ductility.
Controlling the nickel content ensures the finish provides strong corrosion resistance while maintaining ductility for forming, bending, and assembly.
At Gatto, our in-house lab verifies alloy composition daily, analyzing and adjusting each bath to stay within specification guidelines. This ensures our finishes meet performance standards across orders.
Understanding Chromates and RoHS Compliance
Choosing the Right Chromate for Your Application
A chromate conversion coating is a thin chemical layer applied over zinc-nickel to seal the surface, extend corrosion protection, and define its final appearance. It’s available in Clear Trivalent, Iridescent Hexavalent, or Black Trivalent finishes.
The type of chromate specified also determines whether the coating meets RoHS and other environmental compliance standards.

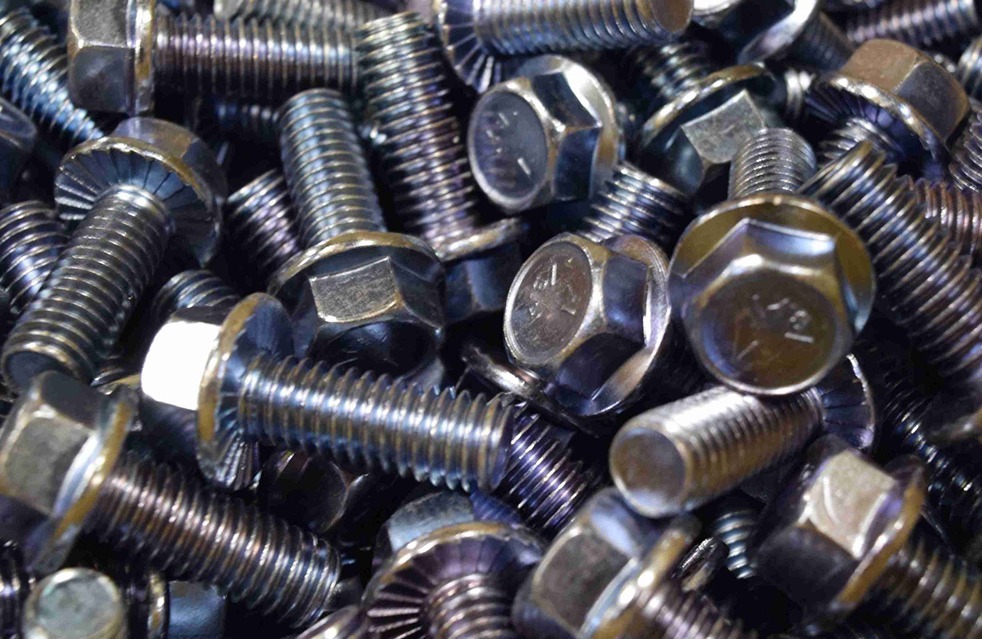

Trivalent Chromates
Trivalent chromates are the modern standard for zinc-nickel plating. They meet global environmental regulations and are accepted across many industries.
- Strong Corrosion Protection- can withstand 240+ hours in salt spray testing
- Available in clear or black
- RoHS Compliant – Does not contain hexavalent chromium, making them safer for workers and the environment

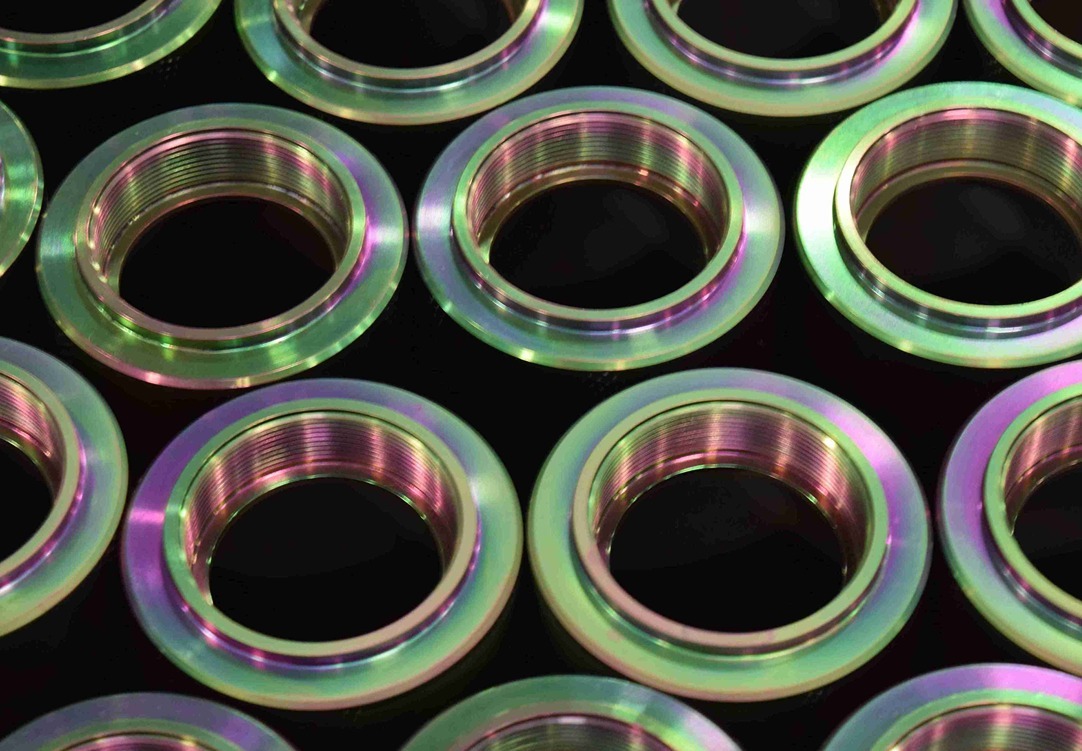

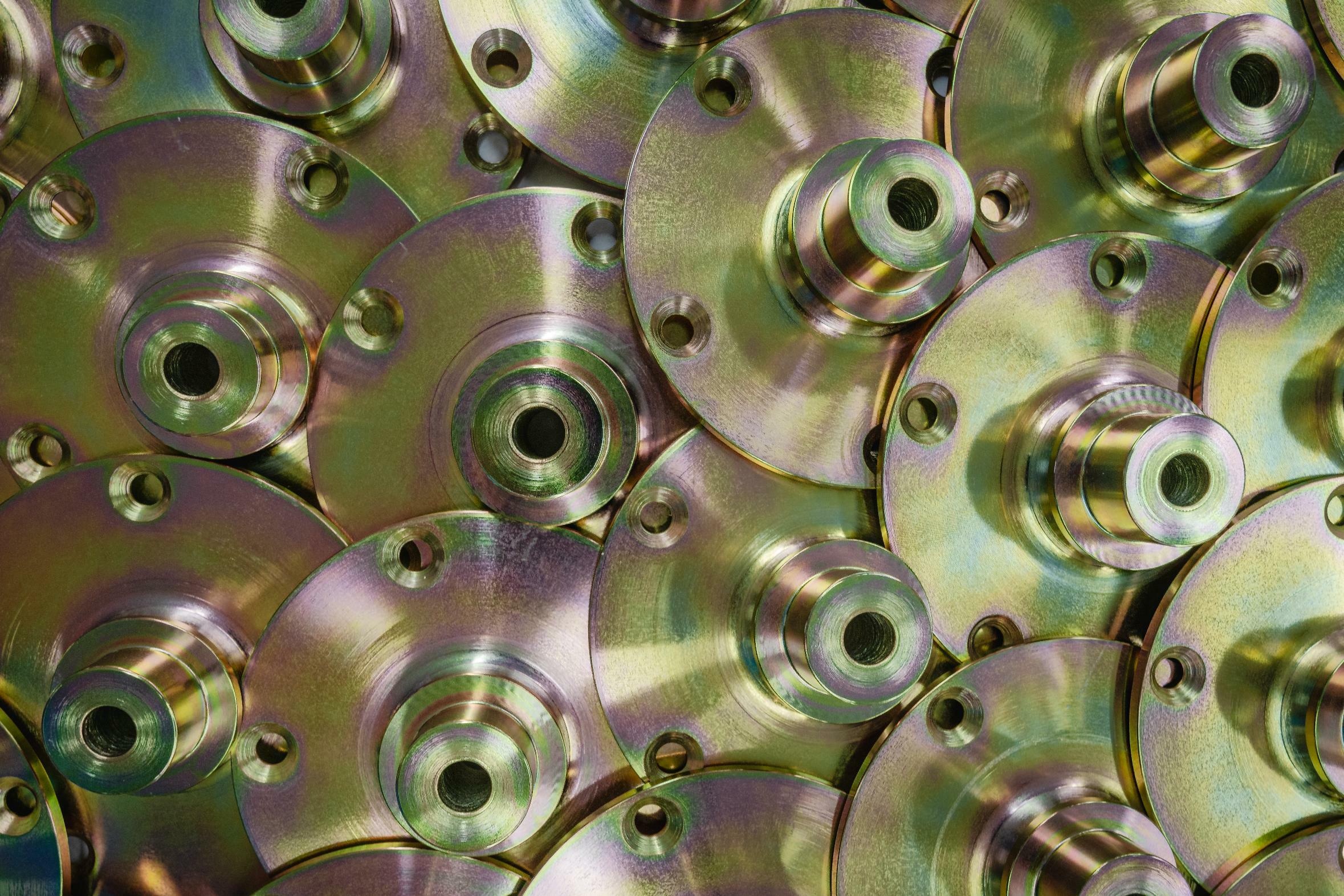

Hexavalent Chromates
Hexavalent chromates are legacy coatings still used in many defense, marine, and general industrial applications.
- Superior Corrosion Protection
- Distinct yellow-red-green iridescent finish
- Not RoHS Compliant – because they contain hexavalent chromium
- Often specified on legacy drawings or older MIL/OEM standards
We provide both trivalent and hexavalent chromate options and helps teams interpret specifications to determine the best fit for their performance and compliance goals.
Zinc-Nickel vs. Zinc Plating — At a Glance
| Property | Zinc-Nickel | Standard Zinc |
|---|---|---|
| Nickel Content | 10–18% (Nickel) | None |
| Corrosion Resistance | 1,000+ hours (ASTM B841) | 200 - 300 hours (ASTM B849) |
| Wear Resistance | High — ideal for moving or mated parts | Moderate |
| Best Use | Harsh Outdoor / High-Temp Applications | General-Purpose Hardware |
| Compliance | RoHS (trivalent available) | RoHS (trivalent available) |
* Corrosion resistance will vary based on chromate type and plating thickness.
Zinc-nickel stands out in demanding environments where heat, salt, or moisture can cause standard zinc to break down. For parts used indoors or protected by paint or powder coat, standard zinc often offers dependable protection at a lower cost.
We run both finishes everyday and understand the capabilities of each. Our team can review your specifications, explain finish behavior, and help you select the most practical option for your parts and performance goals.
Understanding Zinc-Nickel Plating Coverage Limitations
Not all parts plate the same. Corners, welds, holes, threads, and other design features can affect how current flows and where metal builds. Understanding how these details may influence your finish helps prevent surprises, set realistic expectations, and helps you plan for the results you want.
Coverage in Recessed or Shielded Areas
It’s a common misconception that electroplating coats every surface evenly, as if parts are simply dipped into solution and come out fully covered. In reality, plating depends on how electrical current flows between the part (the cathode) and the surrounding anodes in the electrolyte bath.
Why Current Density Varies
Electrical current takes the path of least resistance, meaning not every area of a part builds plating at the same rate.
High-Current Areas
Surfaces that directly face the anode receive stronger current and build metal faster, resulting in thicker plating deposits. These areas typically include:
- Flat faces
- Outer edges
- Corners
- Protruding or exposed features
Low-Current Areas
Recessed or shielded features receive less current density because the current must bend and travel farther through the solution to reach them. These areas naturally plate thinner:
- Deep holes
- Tubing Interior
- Tight corners
- Enclosed seams or cavities
This is why plating thickness varies across a part’s surface and why more complex geometries tend to show greater variation.
Extending plating time to increase buildup in low-current areas doesn’t necessarily solve the problem; it often leads to excessive deposition on exposed areas, which can affect fit, tolerances, and appearance.
Significant vs. Non-Significant Surfaces (ASTM B841)
Understanding which areas of a part require coating control helps set clear expectations and ensures the finish performs as intended.
Significant Surfaces — Areas that must meet the specified coating thickness because they affect function, fit, or corrosion performance. Consistent plating here is essential to maintaining durability and reliability.
Non-Significant Surfaces — Hidden, nonfunctional, or unexposed areas such as interior cavities, blind holes, or mounting surfaces. Under ASTM B841, these do not need to meet the same thickness standard since the coating is either not critical in the areas or the process simply cannot provide an adequate deposit.
Identifying significant surfaces early ensures coating builds correctly without unnecessary overplating or added cost.
When Interior Coverage is Critical
For most parts, interior areas may receive little or no plating coverage. This is typically acceptable because these surfaces are either not critical to the part’s function or cannot be fully coated due to the limits of the electroplating process.
However, when interior protection is critical to a parts performance, the plating process must be customized to direct current into those low-density areas.
We use methods such as:
- Auxiliary Anodes- positioned near interior features to draw current inside
- Custom Racking- or specialized orientation to improve current access
- Controlled Part Rotation- or shielding during plating to balance current flow and reduce edge overbuild
While these techniques can improve interior coverage, complete or perfectly uniform results can’t always be achieved. Because they require specialized setup, additional handling, and tooling, they fall outside standard the processing procedure and will increase labor time and cost.
If interior coverage or specific thickness requirements are needed, it’s important to communicate that at quoting or before production begins. This allows us to plan the correct setup, provide accurate pricing, and ensure your parts are processed to meet both performance and cost goals.
Surface Finish, Thickness and Tolerances in Zinc-Nickel Plating
Surface Appearance Reflects the Base Metal
Another common misconception is that plating hides surface flaws. That it smooths, fills, or “covers” imperfections like paint or powder coat would. Zinc-nickel electroplating is a thin, functional coating designed for corrosion protection, not cosmetic appearance. Even with visible marks or welds, the finish can still meet full performance and corrosion requirements.
Why Imperfections Remain Visible
Zinc-nickel plating is extremely thin, usually just 0.0002–0.0005", so it doesn’t have enough thickness to cover surface flaws. Because the coating conforms to the surface as it deposits, following the exact contour of the base metal, it mirrors every detail rather than filling it. Scratches, weld marks, pits, or porosity will remain visible after plating and may even appear more pronounced under the smooth finish.
When Pre-Plate Finishing Helps
When appearance matters, surface preparation can make a huge impact. Pre-plate finishing steps, such as grinding, polishing, or blasting, will help smooth the base metal so the final coating appears cleaner and more uniform. Taking time to address surface condition before plating not only improves the look of the finish but also sets realistic expectations for how the part will appear once coated.
How Part Design Influences Zinc-Nickel Plating Results
Every part interacts differently with the plating process. Geometry, hanging method, and contact points all influence current flow, drainage, and how evenly the coating builds.
Part Design and Setup Affect Results
Simple, open parts usually plate predictably, while welded assemblies, enclosed shapes, or parts with varying thicknesses require more planning. Rack design, orientation, and spacing determine how solution moves around the part, and whether plating builds evenly or if issues like trapped solution, heavy edges, or air pockets are likely to occur.
Our plating setup gives operators real-time control to adjust rotation, current, and spacing during plating. Before production, we review each part’s design to identify potential challenges and ensure the process supports consistent results.
Minimizing Plating Bleed-Out and Trapped Solution
Plating bleed-out occurs when plating solution becomes trapped inside seams, welds, or joints and seeps out after drying. It often shows up as drip marks, rust, or white residue, but it’s not a plating failure.
This happens because liquid solution can get caught in hard-to-reach areas such as welded joints, seams, blind holes, rivet joints, and porous surfaces. While the part may appear fully rinsed, small amounts of chemistry can remain trapped. As the part dries or ships, that trapped solution slowly escapes, leaving visible marks or stains.
Bleed-out is more common on fabricated or cast parts with tight seams or pores. Beyond appearance, it can compromise the protective finish and lead to premature corrosion if not addressed properly.
At Gatto, we focus on reducing bleed-out before it starts. Our team identifies high-risk part designs early and adjusts our process accordingly through:
- Extended Rinsing Cycles: Custom rinse stages designed to flush chemistry from seams, pores, and cavities.
- Controlled Drain and Dry Times: Allowing extra time between plating stages to reduce trapped solution.
- Targeted Rinsing Techniques: Focused rinsing and agitation in areas prone to entrapment.
- Custom Fixturing: Rack orientation designed to promote better drainage and chemical release.
- Expert Inspection and Handling: Experienced operators review part design and plating behavior to ensure consistent results.
These proactive steps help minimize trapped chemistry, reduce staining, and keep your parts looking clean and performing as intended.
Preventing Air Pockets and Improving Drainage During Plating
Air pockets can form when trapped air prevents the plating solution from reaching certain surfaces. This usually occurs inside deep recesses, welded assemblies, or enclosed cavities where air can’t escape once the part is submerged.
Because electroplating occurs in a liquid bath, every surface must be fully surrounded by solution for current to flow and metal to deposit. If air remains trapped, those areas never contact the solution, leading to thin or uncoated spots. This isn’t a plating failure but a physical limitation of the process. Even with precise racking, air can persist if the part’s geometry doesn’t allow proper fluid movement.
At Gatto, we plan for these challenges before plating begins. Our team evaluates how each part fills and drains, adjusting angles and orientation to help air escape and promote even coverage. When the design limits drainage, we’ll recommend solutions such as vent holes or small design adjustments, to improve flow and set clear expectations. Addressing these details early helps minimize trapped air, improve consistency, and prevent surprises after production.
Understanding Zinc-Nickel Plating Thickness and Tolerance Limits
Zinc-nickel plating typically adds 0.0002" to 0.0010" (5–25 microns) of thickness to a part, depending on the specification, geometry, and service environment. Because electroplating builds through electrical current, thickness naturally varies across a part’s surface. Edges and corners build faster and thicker, while recessed or shielded areas plate thinner.
Because of natural variation in electroplating, holding a thickness range tighter than ±0.0002" isn’t realistic for a standard process. A total plating range of about 0.0004" is typical on most significant surfaces, while edges, corners, and recessed or non-significant areas may show greater variation due to current distribution.
Zinc-Nickel Plating: Answers to Common Questions
No. It’s a single alloy where zinc and nickel co-deposit together, forming one unified coating. This alloy composition is what gives it exceptional corrosion protection.
For best corrosion resistance, the exact range of nickel content may vary depending on who you speak with, but most testing shows that corrosion resistance is maximized with a nickel content above 10% and below 20%.
Yes. Trivalent zinc-nickel finishes are RoHS compliant. Hexavalent versions are non-compliant.
Zinc-nickel typically lasts 5–10× longer than standard zinc in neutral salt-spray testing, depending on coating thickness, chromate type, and part design.
ASTM B841 is one of the most common specifications for zinc-nickel coatings. It covers nickel content, thickness, chromate classification, and corrosion performance.
Zinc-nickel can be used outdoors on functional components that need higher corrosion resistance, but it isn’t a decorative outdoor finish. It provides strong protection for parts exposed to weather and wear, and in long-term outdoor applications it’s often used as a base under secondary coatings like paint or powder coat for maximum durability.
Yes. Zinc-nickel is more expensive than standard zinc. It takes longer to apply, requires more complex chemistry control, and has higher waste-treatment costs.
However, it can extend component life by providing significantly greater corrosion protection and increased heat and wear resistance. For parts that require higher performance, it often delivers better overall value than zinc.
